Full load torque formula

Therefore maximum torque formula for induction motor is as follows. Induction motor full load torque depend upon supply voltage slip and rotor resistance.

Motor volts are 380 volts Eff is 089 and PF is 085 according to the above nameplate.

Full load torque formula. The Full-load Torque is the torque required to produce the rated power of an electrical motor at full-load speed. In imperial units the Full-load Torque can be expressed as. T 5252 P hp n r 1 where.

T full load torque lb ft P hp rated horsepower. N r rated rotational speed revmin rpm In metric units the rated torque can be expressed as. T 9550 P kW n r 2 where.

T rated torque Nm P kW rated power kW n r rated rotational speed rpm. The maximum torque is denoted by T m and occurs at s R 2 X 2. The value of slip which corresponds to maximum torque is denoted by s m.

So by substituting s R 2 X 2 in full load torque expression we get the maximum torque expression. Therefore maximum torque formula for induction motor is as follows. T 5252 HP rpm Where T Full-load Motor Torque HP Horsepower rpm Speed of Motor Shaft Revolution per Minute.

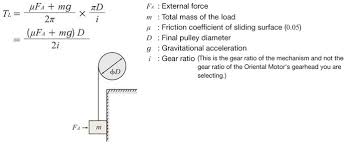

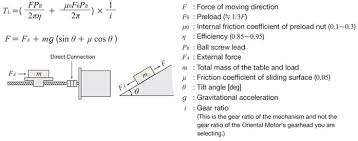

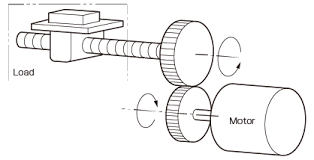

Heres the formula to calculate load torque for a pulley drive with all the variables. The above formula works for applications with friction load or without. If you remove friction from the system friction coefficient of sliding surface µ 0.

External force FA 0. Gear ratio i 1 you essentially end up with the same basic formula of force F x radius r. AC 1 HP single-phase AC motor has an input voltage of 230V the input current of 38 Amps and working at 2500 rpm 08 pf 100 load.

Calculate the torque of the motor. Apply our formula 1 T Nm 230 x 38 x 08 x 100 2 x 314 x 2500 60 266 Nm. The full formula for torque using the moment of inertia and the angular acceleration is where t stands for torque I stands for the moment of inertia and a stands for the angular acceleration.

If youre trying to find torque simply multiply the moment of inertia and the angular acceleration to get your result. The amount of torque a motor produces at rated power and full speed full-load torque can be found by using a horsepower-to-torque conversion chart. Full-load torque FLT is the torque required to produce the rated power at full speed of the motor.

To calculate motor FLT the following formula is applied. T torque in lb-ft HP horsepower 5252 constant. RPM revolutions per minute.

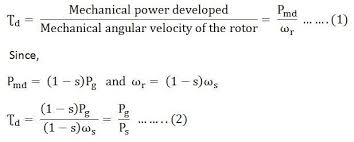

Torque is the action of a force producing or tending to produce rotation. Torque force x distance. Putting the value of flux f rotor current I 2 power factor costh 2 in the equation of torque we get Combining similar term we get Removing proportionality constant we get Where n s is synchronous speed in r.

S n s N s 60. So finally the equation of torque becomes Derivation of K in torque equation. Alternatively Understanding the DC Motor Torque.

Refer below image of a dc motor. Current conductor I c I a A. Therefore force per conductor.

F c BLI a A. T c f cr BLI arA. Hence the total torque developed of a DC machine is This torque equation of DC motor can be further simplified as.

The tractive pull multiplied by the drive pulley radius will give you the load torque. There is no short cut for deciding the load torque. This cannot be calculated from motor side.

5 Having decided the load torque you can decide the required power at motor shaft available motor size gear ratio and so on. The full load engine torque curve T e Nm is characterized by four points. T 0 engine torque at minimum engine speed T max maximum engine torque peak torque or rated torque T P engine torque at maximum engine power T M engine torque at maximum engine speed.

In 3ph induction motor maximum torque2full load torque and starting torquefull load torque find full load speed and slip at maximum torque give a solution in a 3 phase I M maximum torque occurs at a slip. Torque Power and Speed. T ind P o m.

T ind Induced torque in Nm. P power in kW. O m Speed in rmin.

Find the shaft torque of the 10 hp induction motor whose rotor speed is 1500 rmin. T ind 10 hp 746 kWhp 1500 rmin 2 p radr 1 min60 s 4749 Nm. I L S start 3 V T.

The load inertia at the drum is then obtained by using the formula for the inertia of a mass m located at radius r ie. J mr2 yielding the effective load inertia at the drum as 1000 kg 025 m 2 625 kgm 2. The effective inertia of the load as seen by the motor is 1 80 2 625 001 kgm 2.

Induction motor full load torque depend upon supply voltage slip and rotor resistance. Starting torque can be increase by adding external resistance in rotor circuit in slip ring induction. 3 phase motor current calculation formula is P 3xVxPfxEff or P 1732xVxPfxEff Both are the same.

So our motor power is 15KW with 15 x 1000 15000 Watts. Motor volts are 380 volts Eff is 089 and PF is 085 according to the above nameplate. So if we calculate 15000 1732x380x085x089.

Highest torque developed by the motor in the entire speed range Figure 22. T r rated or the full-load torque and should occur as near to the synchronous speed as possible to reduce slip losses. S rated slip at which occur the rated torque and current.
