Once it finds what it likes it tells the injector to remain open and spraying fuel for a given length of time. A special pump sends the fuel under.
Diesel Engine Combustion Chamber Design.
How fuel injection system works. How a fuel injection system works Diesel fuel injection. The fuel injection system in petrolengined cars is always indirect petrol being injected into. All modern petrol injection systems use indirect injection.
A special pump sends the fuel under. At first carburetors were replaced with throttle body fuel injection systems also known as single point or central fuel injection systems that incorporated electrically controlled fuel-injector valves into the throttle body. These were almost a bolt-in replacement for the carburetor so the automakers didnt have to make any drastic changes to their engine designs.
Mechanically The fuel injection system works on the principle whereby the timing valves which are driven by the Cams on the camshaft controls the injection of fuel from a high pressure the pressure is usually being maintained at the desired value by the means of a pneumatically operated spill valve. It follows a fairly straightforward process to do so. The fuel exits the fuel tank via the fuel pump.
It travels through fuel lines towards the engine. The fuel pressure regulator constricts the flow of fuel and only lets a calculated amount through to the injectors. The fuel pressure regulator.
How does fuel injection work. Everything you need to know about fuel injection. Throttle body injection multipoint port injection and direct injection.
How Diesel Fuel Injection Systems Work Diesel Fuel. Diesel fuel is heavier than gasoline because it is obtained from the residue of the crude oil after the. Diesel Engine Combustion Chamber Design.
The fuel injected into the combustion chamber must be mixed thoroughly with the. Methods of Diesel. This video explains how gas patrol injector works.
Just like with wrist watches fuel injection can work electronically or mechanically. Mechanical fuel injection is not very popular nowadays as it is higher-maintenance and takes longer to tune to a specific application. Mechanical fuel injection works by mechanically metering the amount of air going into the engine and the amount of fuel going into the injectors.
This makes it more difficult to calibrate. How Direct Fuel Injection Works Gasoline engines work by sucking a mixture of gasoline and air into a cylinder compressing it with a piston and igniting it with a spark. The resulting explosion drives the piston downwards producing power.
A port injection system injects fuel just prior to the intake stroke outside the cylinder. A carburetor mixes air and fuel long before the air enters the cylinder. In a car engine therefore all of the fuel is loaded into the cylinder during the intake stroke and then compressed.
In a direct injection engine however the fuel skips the waiting period it would have to endure inside a standard engine and instead proceeds straight to the combustion chamber. This allows the fuel to burn more evenly and thoroughly. For the driver that can translate to better mileage and greater power to the wheels.
The H shaped system of metal tubes and rubber hoses allow vacuum from the air meter to reach the injector nozzles which helps the fuel to atomize. 2845 In this photo the vacuum tube to the. Thanks to Squarespace for sponsoring this video.
The Continental fuel-injection system injects fuel into the intake valve port in each cylinder head. Figure 10 The system consists of a fuel injector pump a control unit a fuel manifold and a fuel discharge nozzle. It is a continuous-flow type which controls fuel flow to match engine airflow.

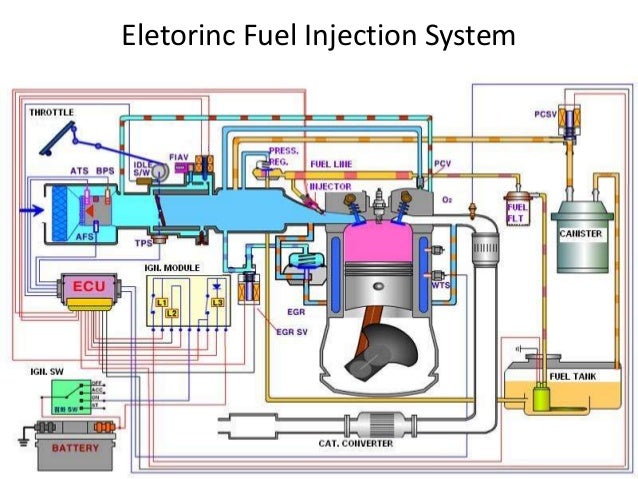

This video is the working principle animation of electronic fuel injection system. It gives the clear idea about how to work a fuel injection system. All electronic fuel injection systems work in essentially the same way.
Information about the engines operating state is conveyed to the computer via sensors. The computer then compares that data to a stored map of fueling requirements. Once it finds what it likes it tells the injector to remain open and spraying fuel for a given length of time.
The fuel is stored in the fuel tank and the fuel pump draws fuel from the tank. It then travels through the fuel lines and is delivered it through a fuel filter to the fuel injectors carburetors and throttle body injection were used on older vehicles.
